Oxygen Permeation Systems

Oxygen Permeation Systems

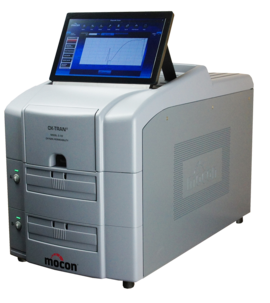

OX-TRAN® Model 2/22 Series

A stand alone, fully automatic high barrier oxygen transmission rate system. Ideal for those new to permeation testing while offering all the features and flexibility required by advanced users.

The OX-TRAN 2/22 is currently offered in two models, the “H” and the “L”  which test in the same range as the OX-TRAN 2/21 “H” and “L” with the added benefits of fully automated testing, faster speed to result, improved accuracy, automatic sequential testing, automatic maintenance of RH, temperature, pressure and flow and a lower cost of ownership.

Features

  • Complies with ASTM D3985, F1927 and F1307. DIN 53380 films. JIS K7126 films. ISO CD 15105-2. 21 CFR Part 11 compliant – optional.
  • Fully automated testing
  • Intuitive touch screen navigation
  • Automatic RH and temperature
  • Automatic pressure and flow
  • Automatic sequential testing
  • Automatic test data saving and printing
  • Faster Coulox ® coulometric sensor
  • Horizontal cells with pneumatic clamping
  • TruSeal ® test cell
  • Ethernet and USB ready
  • Built-in calendar
  • Sensor over-range protection
  • No calibration required
  • Increased throughput
  • Increased repeatability – improved results
  • Faster set up
  • Simple film placement with horizontal cells
  • Reduced time to confirm equilibrium
  • Remote diagnosis

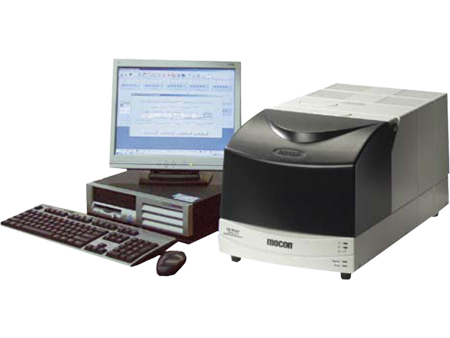

OX-TRAN® Model 2/21 Series

This oxygen transmission rate (OTR) testing system is ideal for high barrier testing for both flat film and finished packages. It consists of 6 separate master instruments each with a different test range. Each master can be expanded with up to 9 satellite units, providing a total of 20 cells per range. The newest instrument in this series, the Model 10x offers OTR testing in the ultra-high barrier range. Only MOCON instruments comply with ASTM D3985.

Features

  • Complies with ASTM D3985, F1927 and F1307. DIN 53380-3 films. JIS K7126-B films. ISO CD 15105-2. 21 CFR Part 11 Compliant
  • Two test cells per module
  • Temperature controlled test cells
  • Self-contained pump and plumping
  • Enclosed test chamber cover
  • TruSeal® test cell (Model 10X only)
  • Water level view ports
  • Precise relative humidity control
  • System status indicators
  • Patented Coulox® sensor
  • WinPerm® software
  • Available package environmental chamber
  • Absolute measurement
  • Long sensor life
  • Flexibility with master control and satellite modules providing different test capabilities
  • No calibration required
  • High accuracy and maximum throughput


OX-TRAN® Model 2/21 10x

This oxygen transmission rate (OTR) testing system is ideal for high barrier testing for both flat film and finished packages. It consists of 6 separate master instruments each with a different test range. Each master can be expanded with up to 9 satellite units, providing a total of 20 cells per range. The newest instrument in this series, the Model 10x offers OTR testing in the ultra-high barrier range. Only MOCON instruments comply with ASTM D3985.

Features

  • Complies with ASTM D3985, F1927 and F1307. DIN 53380-3 films. JIS K7126-B films. ISO CD 15105-2. 21 CFR Part 11 Compliant
  • Two test cells per module
  • Temperature controlled test cells
  • Self-contained pump and plumping
  • Enclosed test chamber cover
  • TruSeal® test cell (Model 10X only)
  • Water level view ports
  • Precise relative humidity control
  • System status indicators
  • Patented Coulox® sensor
  • WinPerm® software
  • Available package environmental chamber
  • Absolute measurement
  • Long sensor life
  • Flexibility with master control and satellite modules providing different test capabilities
  • No calibration required
  • High accuracy and maximum throughput


OX-TRAN® Model 702

The seven cell OX-TRAN Model 702’s simple design is ideal for quality control, conducting shelf life studies and other research and development applications. It test both flat films and finished packages. Only MOCON instruments comply with ASTM D-3985.

Features

  • Complies with ASTM D-3985, F-1927 and F-1307. DIN 58880 films. JIS K-7126 films. ISO CD 1510-2
  • Seven test cells
  • Quick start Function
  • Patented Coulox® sensor
  • Pneumatic clamping push button test cells
  • Removable cells
  • Operator friendly software
  • Automatic electronic flow control
  • Test up to seven films or packages simultaneously
  • No calibration required
  • Film and package testing in any combination
  • Easy sample preparation

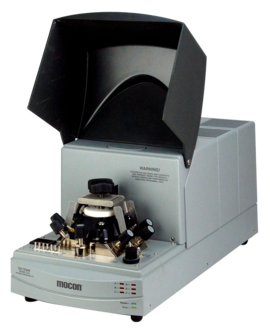

OX-TRAN® Model 2/61

Ideal six cell oxygen permeation transmission rate (OTR) testing system for high throughput film and finished package testing. Good for use in production and QA/QC testing applications. This system incorporates the latest in high-sensitivity sensory design and features six test cells for flexibility and speed. Only MOCON instruments comply with ASTM D-3985.

Features

  • Complies with ASTM D-3985, F-1927 and F-1307. DIN 53380 films. JIS K-7126 flims. ISO CD 15105-2
  • Test flat films or finished packages
  • Test up to six samples simultaneously
  • Quick Start functionality
  • Package testing in accordance with ASTM F-1307
  • Windows® based software interface
  • Maximum throughput with six separate cells
  • Easy export of test results
  • Remote diagnostics
  • Easy sample placement
  • Expandable up to 60 test cells


Rack – 6™

MOCON’s RACK-6™ system increases throughput for testing the oxygen transmission rate through rigid package when used in conjunction with OX-TRAN® 2/61. Designed to allow for rapid testing of rigid packages containing oxygen barrier and scavenger material.

Features

  • Package conditioning Rack
  • Container Transfer Unit (CTU)
  • Quickly adaptable and retrofittable to the MOCON OX-TRAN Model 2/61
  • Continually condition six packages while simultaneously testing six packages
  • Add (any number of conditioning racks) to further increase throughput
  • For rigid packages containing oxygen barrier and scavenger material
  • Condition off-line and periodically monitor for breakthrough
  • CTU allows transfer of packages in seconds to instrument testing cells
  • CTU ensures no loss of equilibrium
  • High throughput


OpTech O₂ – Model P

The OpTech®– O₂ Model P replaces the OpTech®– O₂ Platinum. It measures oxygen permeation, headspace, dissolved oxygen and package leak. It is the ideal multi-application oxygen analyzer for food, beverage, pharmaceutical and medical applications where measuring oxygen and understanding its effect on product shelf life is critical. In addition, the Model P offers the new Pressure Needle which enables the the instrument to automatically compensate for internal package pressure.

Internal package pressure directly impacts the accuracy of the oxygen reading with optical fluorescence instruments. For example, if the internal package pressure is half the ambient pressure and is not compensated for by the instrument, the oxygen percentage will falsely read half the actual percentage in the package. Conversely, if the internal package pressure is twice the ambient pressure, the oxygen percentage will falsely read two times higher than the actual percentage. Incorrect oxygen readings directly impact the projected shelf life requirements.

In all other aspects the Model P is identical with the Platinum version. Internal package pressure has always been able to be entered manually and is available on the Model P.

Features

  • Ergonomic
  • No bulky fiber optic cables
  • Automatic internal package pressure compensation*
  • Lightweight and portable
  • Reusable, easy to place sensors – no glues needed
  • Non-consuming sensor – designed for limited headspace
  • Visible, non-UV light source for simple, targeted reading
  • ImPULSE™ sensor for opaque packaging materials
  • Packaging oriented software
  • No gas calibration needed for the reader
  • Accurate readings through colored packaging material
  • One calibration for all adhesive sensors
  • Non-consuming sensors make it ideal for long term O₂ studies

* When using the Pressure Needle

Specification

Detector and Base

  • Warm-up time: 20 minutes
  • Detector dimensions: Width: 1.3 in 3.30 cm Height: 1.9 in 4.83 cm
  • Depth: 9 in 22.86 cm (with needle), 6 in 15.24 cm (without needle)
  • Base Dimensions: Width: 4.8 in 12.19 cm Height: 2.7 in 6.8 cm
  • Depth: 10 in 25.40 cm
  • Measurement method: Epifluorence Confocal
  • Power: Standard Power USB Port (2.5 watt)
  • Operating temperature: 10 – 35C
  • Operating humidity: 0 – 100% non-condensing
  • Compliance: CE/CSA/UL
  • PDF report options: Through program from computer


OX-TRAN® Model 2/10

This two cell oxygen transmission rate (OTR) testing system offers our widest sensor range. Testing for flat films and packages at a variety of ranges. Complies with ASTM F-2622.

Features

  • Complies with ASTM F-2622. CFR21 Part 11 compliant
  • Standard electrochemical sensor
  • Measures down to 0.1 cc/(m2 · day)
  • Two test cells
  • Improved accuracy with flow and pressure compensation
  • High throughput – expandable to 20 test cells (10 modules)
  • Test films and finished packages


OX-TRAN® Model 1/50

Designed for low cost oxygen permeation rate testing with single cell flat films. Only MOCON instruments comply with ASTM D3985.

Features

  • Complies with ASTM D3985, F1927. JIS K7126-B. DIN 53380-3. ISO 15105-2
  • Automatic RH control
  • Built-in software
  • Advisory screen prompts operator input
  • Customize and store up to 99 test methods
  • System protects against over or under pressure
  • System protects against thermal runaway
  • Status-screens display real-time information
  • Pneumatic clamping
  • No flow adjustment required
  • No calibration required
  • Easy film placement with lift out test cell
  • Pretest preparation available with additional cells
